Spinner - Hanger Shot Blasters
THL (Hanger Loop)

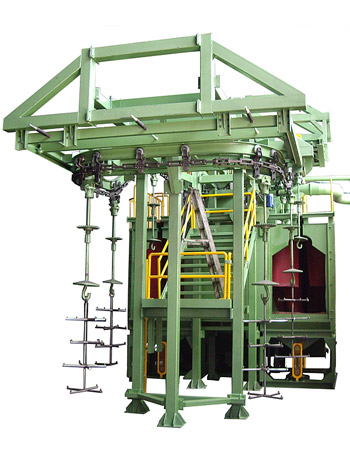

The Tochu Hanger Loop Shot Blasting Machine Type THL is a very popular choice for customers that require cleaning and/or removal of sand from large, heavy cast iron and steel castings. Our flexible hanger loop configuration enables the customer to minimize the space requirements for the equipment, making this machine type the preferred choice within the foundry and forge industry.
- High production capacity
- Fully automated transport of parts during the process cycle
- Blasting of complex part shapes is possible due to blast wheel locations
- Easy machine operation and maintenance
| Model Type | THL-8RA371-AD |
|---|---|
| Max. diameter of workpiece hanger [mm] | 800 |
| Height of workpiece hanger [mm] | 1100 |
| Max. loading weight per hanger [kg] | 500 |
| Max. single workpiece weight [kg] | 500 |
| Average cycle time (e.g. die-casting workpiece) [sec] | 100 |
| Number of blast wheels & capacity | 4 x 20 Hp (15 Kw) 4 x 25 Hp (18.5 Kw) |
| Air consumption | 30 cfm at 6 bar |
| Total power requirements | 204 Hp (152 Kw) |

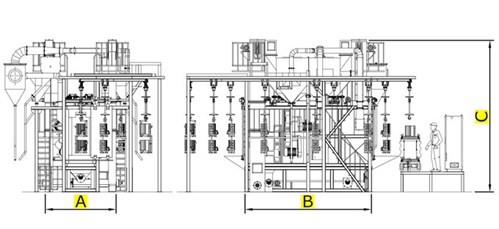

| Machine dimensions [mm] | A 2800 B 5000 C 6000 |
