Belt Blasters

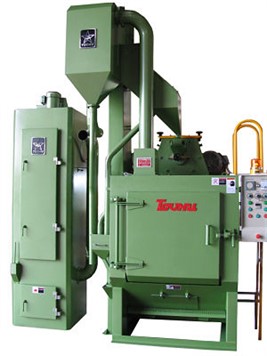

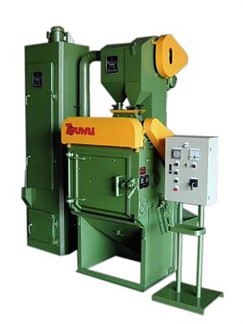

TC-60 & TC-312DM Tochu Small Tumblast
These Tochu Tumblast Shot Blasting Machines Type TC are suitable for customers looking for an economical way to clean smaller automotive workpieces, roughen the surface prior to rubber coating or to achieve a cosmetic surface finish for die-casting components. The capability to blast even the smallest workpieces, e.g. screws and nuts, make this product range one of our most popular to date.
- Efficient blasting of complicated workpiece shapes due to the tumbling action
- Automatic unloading of workpieces after blasting cycle
- High wear resistant rubber conveyor belt ensures gentle tumbling of parts
- Easy machine operation and maintenance
- Blasting chamber lined with wear resistant material which can be easily exchanged
- Compact machine design minimizes space requirements
| Model Type | TC-60 | TC-312DM |
|---|---|---|
| Charge Volume [m3] | 0.1 | 0.3 |
| Max. charge weight [kg] | 70 | 300 |
| Number of blast wheels & capacity | 1x3 Hp (2.2 Kw) | 1x7.5 Hp (5.5 Kw) |
| Total power requirements | 5 Hp (3.7 Kw) | 11 Hp (8.1 Kw) |
| A 1100 | A 1200 | |
| Machine dimensions [mm] | B 900 | B 1200 |
| C 2500 | C 3500 |

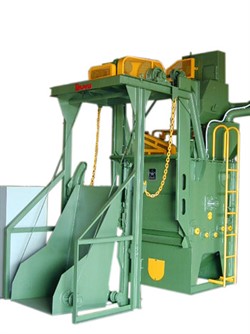

TC-500/TC-1000 - Tochu Large Tumblast
These Tochu Tumblast Shot Blasting Machines Type TC are suitable for customers needing a heavy duty blasting machine that is mainly used to remove sand from medium to large iron castings, the descaling of forged parts or the preparation of various surfaces prior to rubber coating. Equipped with a bucket loader and discharge belt, these machines maximize the workpiece handling process.
- Efficient blasting of complicated workpiece shapes due to the tumbling action
- Automatic loading and unloading of workpieces
- High wear resistant rubber conveyor belt ensures gentle tumbling of parts
- Easy machine operation and maintenance
- Blasting chamber lined with high wear resistant material which can be easily exchanged
| Model Type | TC-500 | TC-1000 |
|---|---|---|
| Charge Volume [m3] | 0.5 | 1 |
| Max. charge weight [kg] | 500 | 1000 |
| Number of blast wheels & capacity | 1x20 Hp (15 Kw) | 1x30 Hp (22.5 Kw) |
| Air consumption | 18 cfm at 6 bar | 18 cfm at 6 bar |
| Total power requirements | 33 Hp (24.7 Kw) | 52 Hp (39 Kw) |

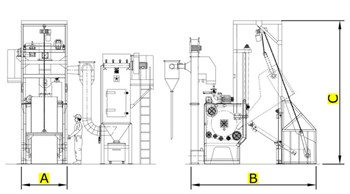

| A 1600 | A 1800 | |
| Machine dimensions [mm] | B 4400 | B 5000 |
| C 5100 | C 5800 |
